Flrn36-12D Ketik switch beban SF6

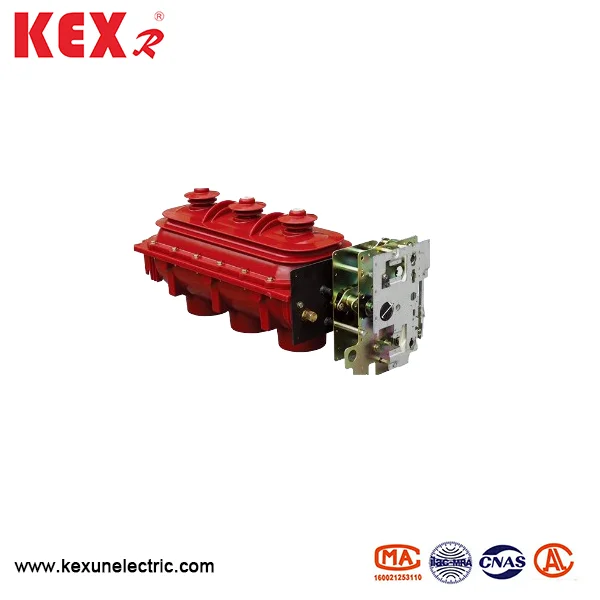

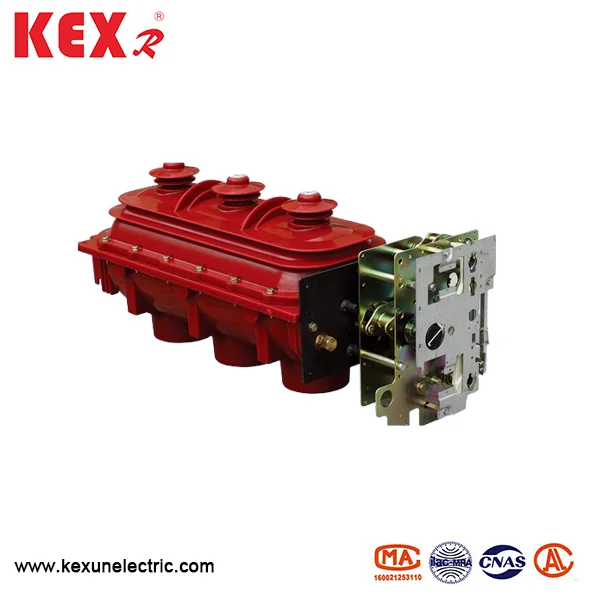

The FLRN36-12d type SF6 load switch specially produced by Kexun in China Factory uses SF6 gas as arc extinguishing and insulating medium, and the rated switch is 12KV. There are three stations in the switch: closing, opening and grounding. It has the characteristics of small volume, convenient installation and use and strong environmental adaptability.
Model: N36-12D
Brand：KEXR
Model: N36-12D
Brand：KEXR
● area aplikasi

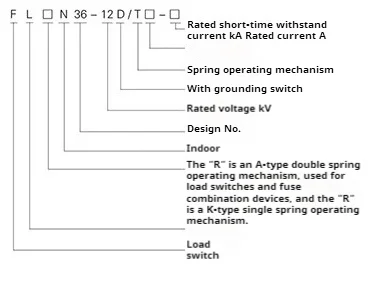

Seri saka macem-macem obah kasebut dipérang dadi flrn36-12d (mekanisme operasi musim semi tunggal) lan flrn36-12d / a (jinis Mekanisme operasi spring spring). Flrn36-12D bisa digabungake dadi saklar beban + sekring nggawe fungsi listrik lan pangayoman minangka peralatan listrik, sing bisa digunakake kanggo lemari listrik, sing cocog kanggo lemari jaringan lan stasiun pamulihan distribusi.
◆ Memu standar
IEc60265, IEC62271, GB3804, GB16926 etc ..
● Kauntungan struktural saka flrn36-12 jinis switch SF6
▶ Insulasi cangkang: sirkuit sirkuit lan brounding saka flrn36-12D Ketik switch SF6
Ditegel ing cangkang penebat digawe saka proses eksisi kanthi proses APGI, sing nduweni kaluwihan kinerja penebat lan lingkungan anti-polusi sing apik.
▶ Struktur cangkang insulasi: cangkang penebat dumadi saka tutup insulasi ndhuwur lan ngisor.
▶ Gas internal: gas SF6 kanthi tekanan relatif saka 0.4bar diisi ing njero 0.4bar diisi ing njero, supaya njamin manawa gas SF6 sing overpressere langsung disemprotake ing saluran mburi ing kasus kacilakan, lan njamin keamanan pribadi.
▶ Langkah-langkah protèktif: tutup insulasi ngisor duwe langkah-langkah eksplosion-bukti supaya bisa njamin keamanan.
● Nggunakake kahanan
Suhu sekitar: Suhu sekitar flrn36-12D Ketik switch SF6
Kudu dadi -40 ~ 40 ℃
◆ Umur: Kelembapan relatif rata-rata maksimal yaiku 95% saben dina lan ≤ 100% saben wulan.
◆ Altitude: ngalih flrn36-12D Tipe SF6 bakal dipasang ing ngisor iki
2000m.
◆ kapasitase seismik: ≤8
◆ Udhara sekitar kudu bebas saka polusi sing jelas kayata gas sing bisa diobong lan bisa dibakar, lan ora ana geter kasar.
● Parameter Teknis saka flrn36-12D Ketik switch SF6
|
Item |
Unit |
Flrn36-12d / t630-20 |
Flrn36-12d / 100-50 jinis |
|
Rated voltase |
Kv |
12 |
12 |
|
Frekuensi dirating |
Hz |
50 |
50 |
|
Rated saiki |
A |
630 |
100 |
|
1min Frekuensi Daya Tanduran Interphase Voltase / Fraktur |
Kv |
42/48 |
42/48 |
|
Interphase / Fraktur |
Kv |
75/85 |
75/85 |
|
5 Min 0GAUGE REATTOR POWER frekuensi tahan voltase |
Kv |
24 |
24 |
|
Stabilitas termal dirating 3 detik / 2 detik |
The |
20/20 |
20/20 |
|
Rated Stabil Stabil Dinamis (Puncak) |
The |
50/50 |
50/50 |
|
Saiki dirating Short-Circuit Saiki |
The |
50/50 |
125/50 |
|
Tutup tertutup sing ditutup |
A |
630 |
|
|
DATHING AKTIF INTERRUPTING SAIKI |
A |
630 |
|
|
Dipasang Kabel Ngisi daya Breaking |
A |
10 |
10 |
|
Dirating Lingkaran Longkr-Water |
The |
|
50 |
|
Saiki transfer saiki |
A |
|
1700 |
|
Jinis sekring |
|
|
Xrnt-12kV / 100A |
|
Pengaruh sekring mbuwang energi |
J |
|
1 ± 0,5 |
|
Urip mekanik |
Wektu |
5000/2000 |
3000/2000 |
|
Jarak antarane badan sing diisi lan insulasi udhara sing relatif |
mm |
≥125 |
≥125 |
|
Meksa gas sf6 |
Bar |
0.4 |
0.4 |
|
Sinkronisasi mbukak lan nutup |
MS |
≤2 |
≤2 |
|
Rintangan sirkuit utama |
bayi |
≤65 |
≤65 |
